j5create JCD543, 13-in-1 USB-C Triple Display Docking Station, Dual 4K 30Hz and Full HD 1080p, 100W Power Delivery Pass-Through, 5Gbps USB, Gigabit Ethernet, SD and microSD, Dual HDMI, DisplayPort, VGA, Audio, Silver and Black, 2-Year Warranty | JCD543

-22% New

j5create JCD543, 13-in-1 USB-C Triple Display Docking Station, Dual 4K 30Hz and Full HD 1080p, 100W Power Delivery Pass-Through, 5Gbps USB, Gigabit Ethernet, SD and microSD, Dual HDMI, DisplayPort, VGA, Audio, Silver and Black, 2-Year Warranty | JCD543

In Stock
Brand: j5create
Product Code: JCD543
Product viewed: 80
Including VAT

Special price:

AED389.00

Old price:

AED499.00

You save:

22%

1 reviews Write a review

Qty

The j5create JCD543 is a 13-in-1 USB-C triple-display docking station supporting up to two 4K 30Hz digital displays and one Full HD VGA display. It provides 100W Power Delivery pass-through, four 5Gbps USB data ports, Gigabit Ethernet, SD and microSD readers and combination audio. Its elevated aluminium design also functions as a laptop stand. A compatible USB-C power adapter is sold separately.

Delivery within 2 working days

Description
Reviews (1)

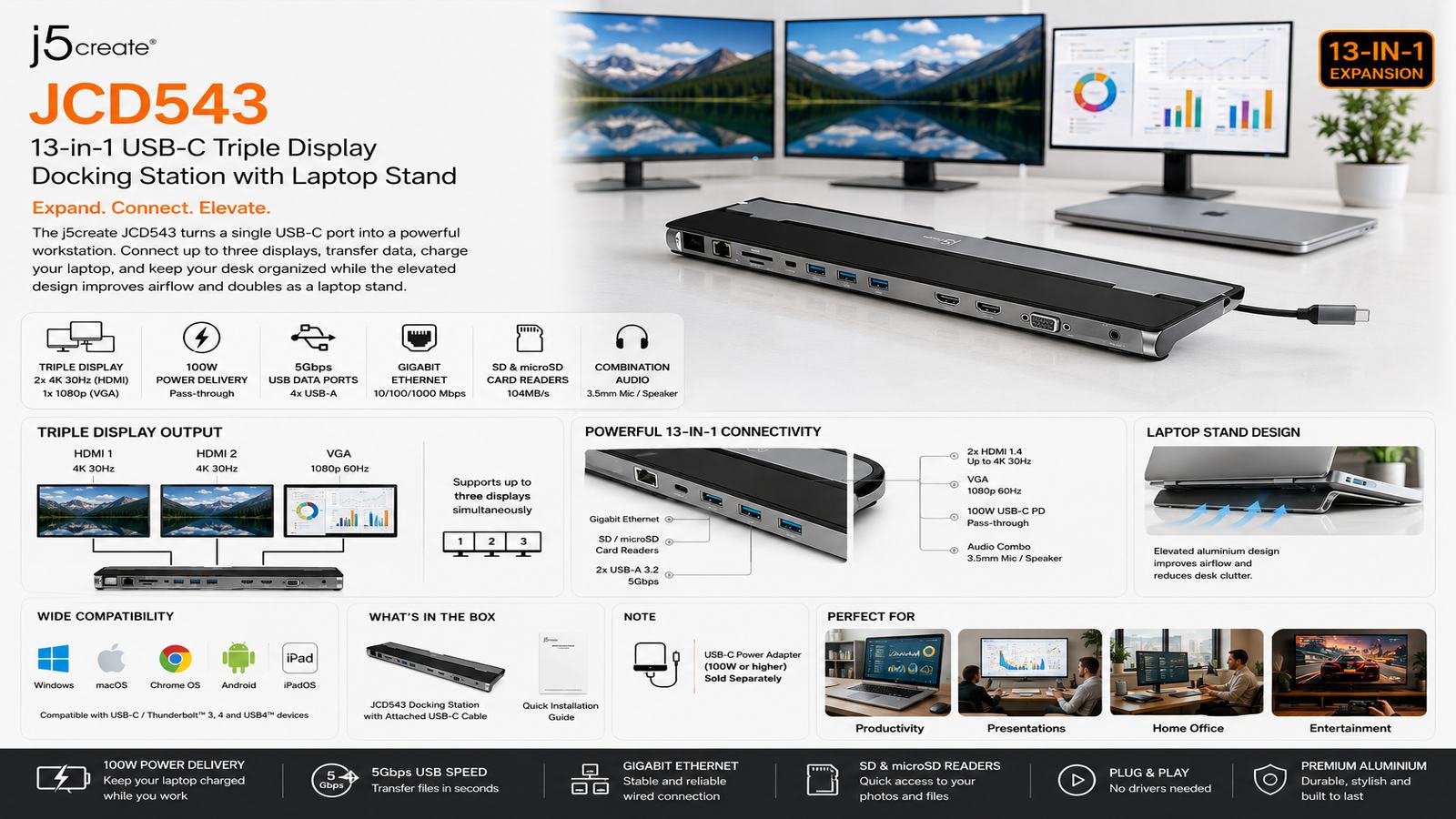

j5create JCD543 USB-C Triple Display Docking Station

The j5create JCD543 USB-C Triple Display Docking Station expands a compatible Windows or macOS laptop into a complete multi-monitor workstation. Its 13-port design combines multiple display outputs, USB connectivity, Gigabit Ethernet, memory-card readers, audio and USB-C Power Delivery in one slim docking station.

Triple-Monitor Display Support

The dock supports up to three external displays using HDMI, DisplayPort and VGA. Compatible configurations include HDMI, VGA and DisplayPort or dual HDMI with VGA, with resolutions up to 4K at 30Hz on two supported digital displays and Full HD 1080p at 60Hz through VGA.

100W USB-C Power Delivery Pass-Through

The USB-C Power Delivery 3.0 input supports up to 100W pass-through charging when used with a compatible USB-C power adapter. This allows a connected laptop to receive power while the docking station and attached peripherals remain in use. The power adapter is sold separately.

5Gbps USB and Fast Charging

Three USB Type-A ports and one USB-C downstream port support data-transfer speeds up to 5Gbps. One USB Type-A port supports BC 1.2 fast charging for compatible smartphones, tablets and other mobile devices.

Gigabit Ethernet, Card Readers and Audio

The JCD543 includes Gigabit Ethernet for a stable wired network connection, SD and microSD card slots for convenient file access, and a 3.5mm combination audio jack for compatible headphones, speakers and microphones.

Laptop Stand and Cable Management

The elevated aluminium design can be used as a laptop stand to assist heat dissipation. Its integrated double-sided cable-storage compartment allows the attached USB-C cable to exit from either side for convenient connection to laptops with differently positioned USB-C ports.

j5create JCD543

Transform One USB-C Port into a Complete Workstation

Connect multiple displays, wired networking, storage cards, USB accessories, audio and charging through one flexible USB-C docking station.

Triple Display HDMI, DisplayPort and VGA

Up to 4K 30Hz HDMI or DisplayPort output

100W PD USB-C charging pass-through

5Gbps USB USB-C and USB-A ports

Gigabit Ethernet Stable wired networking

j5create JCD543 powering a triple-monitor workstation

Built for Productive Multitasking

Expand Your Laptop Across Up to Three External Monitors

Create more screen space for spreadsheets, communication, creative applications, research and other demanding multitasking workflows.

Flexible Multi-Monitor Connectivity

Connect Modern and Legacy Displays

Two HDMI ports, one DisplayPort connection and VGA support provide flexible options for monitors, projectors and existing office display equipment.

HDMI DisplayPort and VGA video connections on j5create JCD543

2 × HDMI DisplayPort VGA Mirror Mode Extended Mode

High-Resolution Display Support

Add More Screen Space Without Replacing Your Laptop

Compatible HDMI and DisplayPort outputs support resolutions up to 4K at 30Hz, while VGA supports resolutions up to 1920 × 1080 at 60Hz.

Extended display resolution support of j5create JCD543

13 Connections in One Sleek Dock

Connect Displays, Storage, Networking and USB Accessories

Expand a compatible laptop with essential workstation connections while keeping frequently used devices connected through one central docking station.

Complete port layout of j5create JCD543 USB-C docking station

3 × USB-A 5Gbps USB-C 5Gbps Gigabit Ethernet SD Card Reader microSD Reader Combo Audio

USB-C and USB-A ports on j5create JCD543 docking station

Fast USB Expansion

Connect storage drives, keyboards, mice, smartphones and other compatible peripherals through three USB-A ports and one USB-C downstream port.

SD and microSD card readers on j5create JCD543

Convenient Memory-Card Access

Transfer, organise and back up compatible photos, videos and files through the integrated SD 3.0 and microSD 3.0 slots.

USB-C Power Delivery Pass-Through

Keep Your Laptop Powered While Using the Dock

Connect a compatible USB-C Power Delivery adapter to support charging pass-through of up to 100W while displays and peripherals remain connected.

USB-C Power Delivery input on j5create JCD543

Dock, Stand and Cable Organiser

Raise Your Laptop and Keep the USB-C Cable Organised

The long aluminium-style body doubles as a laptop stand, while the internal cable compartment stores the integrated USB-C cable when it is not in use.

Laptop positioned on j5create JCD543 docking station stand

Double-sided USB-C cable storage inside j5create JCD543

A Complete USB-C Workstation for Multi-Display Productivity

The j5create JCD543 combines triple-display expansion, Power Delivery, Gigabit Ethernet, high-speed USB, card readers, audio and cable management in one streamlined docking station.

Official j5create product and lifestyle images are used for illustration purposes. The JCD543 package includes the docking station and installation guide; a USB-C Power Delivery adapter is sold separately. Driver installation is required for supported Windows and macOS systems. The first HDMI and DisplayPort connections share one video-output channel and cannot be used simultaneously. Maximum display resolution and charging performance depend on the connected computer, graphics capability, operating system, power adapter, cables and display configuration.
