Memory Capacity |
Memory: 256 MB ;
Flash Memory 32 MB |
Physical Interface |
2 x 10/100/1000 Gigabit Ethernet Ports ;
- LAN1 ;
- LAN2 ;
1 x Reset Button |
Antenna |
4 x 5dBi External Detachable SMA Omni-Directional Antennas |
Certifications |
FCC ;
IC |
Channelization |
802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz ;
802.11n supports high throughput (HT)—HT 20/40 MHz ;
802.11n supports very high throughput (VHT) under the 2.4 GHz radio—VHT (256-QAM) ;
802.11n/ac packet aggregation: AMPDU, ASPDU |
Control Features |
Managed Mode (w/ezMaster/EnSky Switch) ;
Distance Control (ACK Timeout) ;
Multicast Supported ;
Wi-Fi Scheduler ;
Client Traffic Status ;
RADIUS Accounting ;
Power Save Mode (U-APSD Support) ;
CLI Support ;
HTTPS |
Deployment Options |
Stand-Alone (Individually Managed) ;
Managed Mode (w/ezMaster/EnSky Series Switch) |
Device |
Weight: 1.11 lbs. (507 g)
Width: 7.54” (191.6 mm)
Length: 4.49” (114.3 mm)
Height” 1.88” (47.7 mm)
|
ESD Protection |
Contact: 4KV ;
Air: 8 KV |
Frequency Radio |
2.4GHz: 2400 MHz ~ 2835 MHz ;
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz |
Humidity (non-condensing) |
Operating: 90% or less ;
Storage: 90% or less |
Ingress Protection Marking |
IP55-Rated Waterproof/Dustproof Enclosure |
LED Indicator |
1 x Power ;
WLAN (Wireless Connection) ;
2.4 GHz ;
5 GHz ;
2 x LAN |
Mounting options |
Wall Mount ;
Pole Mount |
MU-MIMO |
5GHz - Two (2) Spatial Streams MU-MIMO for up to 1267Mbps to two (2) MU-MIMO capable wireless devices simultaneously |
Operating frequency |
Dual-Radio Concurrent 2.4GHz & 5GHz |
Operation Modes |
Access Point Mode (AP mode) ;
Client Bridge Mode (CB Mode) ;
WDS: WDS AP, WDS Bridge, WDS Station |
Package Contents |

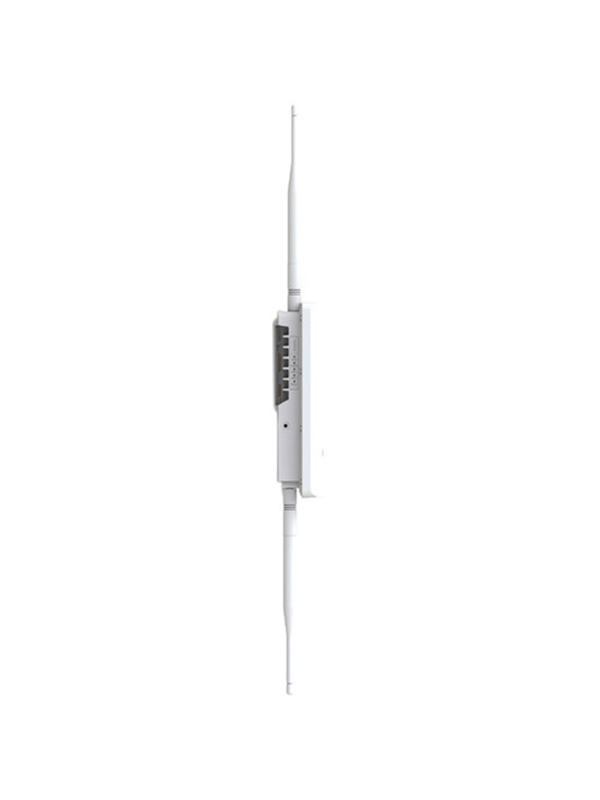

- ENS620EXT 11ac Wave 2 Outdoor AP ;
- PoE Injector (EPA2410GP) ;
- Pole Mount Ring ;
- Mounting Screw Set ;
- RJ-45 Ethernet Cable ;
- Quick Installation Guide ;
- 2 - 2.4GHz 5dBi SMA Antennas ;
- 2 - 5GHz 5dBi SMA Antennas |
Power Source |
PoE Injector (EPA2410GP) ;
INPUT: 100-240VAC, 0.7A, 50-60Hz ;
OUTPUT: 24V, 1A ;
Power-over-Ethernet: Proprietary 24V PoE ;
IEEE 802.11e Compliant Source ;
Active Ethernet (PoE) |
Radio Chains/Spatial Streams |
11AC Wave2 2x2:2 ;
Tx Beamforming (TxBF) |
Stand-Alone Management Features |
Auto Channel Selection ;
Auto Transmit Power ;
Wireless STA (Client) Connected List ;
Guest Network ;
Fast Roaming (802.11k & 802.11r) ;
Pre-Authentication (802.11i, 802.11x) ;
PMK Caching (802.11i) ;
RSSI Threshold ;
Traffic Shaping ;
VLANs for Access Point – Multiple SSIDs ;
Backup/Restore Settings ;
Auto Reboot ;
E-Mail Alert ;
Site Survey ;
Save Configuration as Users Default |
Standards and Protocols |
IEEE 802.11b/g/n on 2.4 GHz ;
IEEE 802.11a/n/ac on 5 GHz ;
IEEE 802.1r ;
IEEE 802.1k ;
IEEE 802.11x |
SU-MIMO |
5GHz - Two (2) Spatial Streams SU-MIMO up to 1267 Mbps to a single client |
Supported Data Rates (Mbps) |
2.4 GHz: Max 400 ;
5 GHz: Max 867 ;
802.11b: 1, 2, 5.5, 11 ;
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 ;
802.11n: 6.5 to 400 (MCS0 to MCS15) ;
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1~2) |
Supported Modulation |
802.11b: BPSK, QPSK, CCK ;
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM ;
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
|
Supported Radio Technology |
802.11b: Direct-Sequence Spread-Spectrum (DSSS) ;
802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM)
|
Surge Protection |
Line to Line: 1 KV ;
Line to Ground: 2KV |
Temperature |
Operating: -4°F to 140°F, -20°C to 60°C ;
Storage: -22°F to 176°F, -30°C to 80 °C
|
Wireless Security |
WEP Encryption 64/128/152 bit ;
WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES) ;
Hide SSID in Beacons ;
MAC Address Filtering, Up to 32 MACs per SSID ;
Wireless STA (Client) Connected List ;
SSH Tunnel ;
Client Isolation |
Processor |
Qualcomm® 717 MHz Quad-Core CPU ;
4x ARM Cortex A7 |
