EnGenius EWS330AP Wi-Fi5 Wave 2 Managed Compact Indoor Wireless Access Point

EnGenius EWS330AP Wi-Fi5 Wave 2 Managed Compact Indoor Wireless Access Point

In Stock
Brand: EnGenius
Product Code: EWS330AP
Product viewed: 4472
Including VAT

AED339.00

2 reviews Write a review

Qty

Delivery within 2 working days

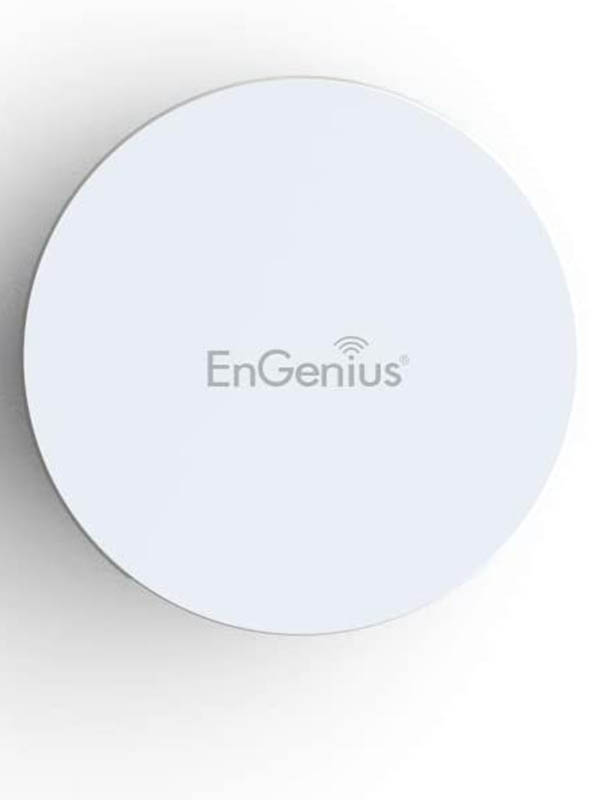

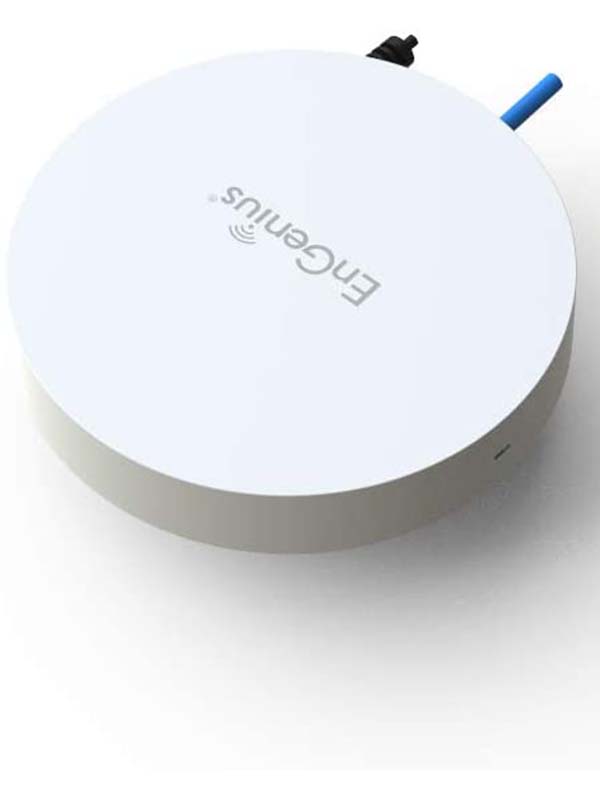

The EWS330AP is a compact Indoor Wireless Access Point.
It is also incredibly powerful, providing an improved coverage area, faster connectivity & higher user capacity.
The EWS330AP’s powerful quad-core processor boosts wireless performance and efficiency with up to 30% Over 11ac Wave 1 3x3 APs faster throughput compared with traditional access points.
11ac Wave 2 Wireless Speeds to 867 Mbps (5 GHz); to 400 Mbps (2.4 GHz).
Mesh Wireless Support Simplifies Setup, Optimizes Signals & Self-Heals.
Adjustable 26 dBm Radios with 5 dBi Integrated Antennas for Improved Coverage.
MU-MIMO Improves Performance & Increases User Device Capacities.
802.3af PoE Port offers easy placement where power outlets are unavailable.
Engenius EWS330AP manufactured by Engenius.
Engenius EWS330AP at the best price in the United Arab Emirates.
Engenius EWS330AP can be free delivered to United Arab Emirates.
The product/item is Brand New with Warranty.

General
Brand	ENGENIUS
Model	EWS330AP
Color	White
Technical Spec

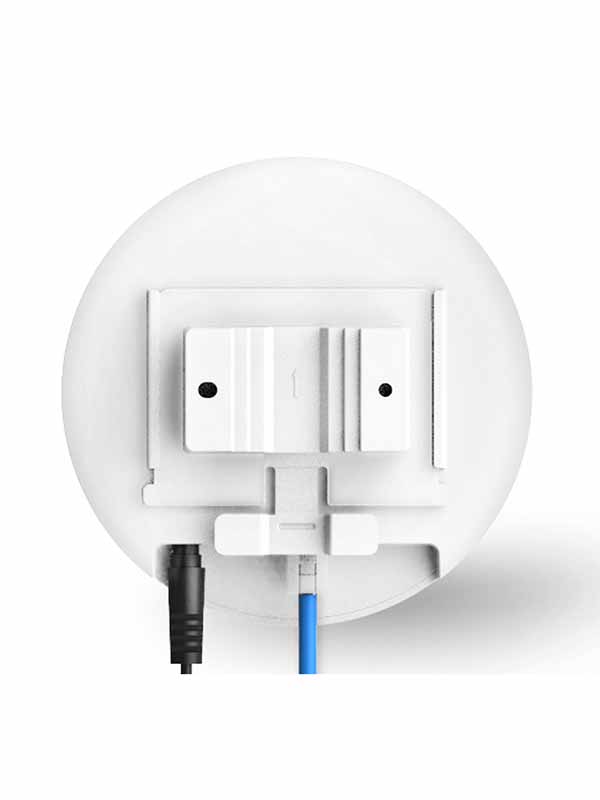

Physical Interface	1 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Port ; 1x DC Jack ; 1 x Reset Button
Antenna	2 x 2.4 GHz: 5 dBi ; 2 x 5 GHz: 5 dBi ; Integrated Omni-Directional Antenna
Certifications	FCC ; CE
Channelization	802.11n Supports High Throughput (HT)—HT 20/40 MHz ; 802.11n Supports Very High Throughput (VHT) Under the 2.4 GHz Radio—VHT 40 MHz (256-QAM) ; 802.11n/ac Packet Aggregation: AMPDU, ASPDU ; 802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
Control Features	Managed Mode (w/EnSky Switch/ezMaster) ; Distance Control (ACK Timeout) ; Multicast Supported ; Wi-Fi Scheduler ; Client Traffic Status ; RADIUS Accounting (802.1x) ; Power Save Mode (U-APSD Support) ; CLI Support ; HTTPS
Deployment Options	Stand-Alone (Individually Managed) ; Managed Mode (with EnSky Series Switch/ezMaster)
Device	Weight: 2.53 lbs.; Width: 5.98" (152 mm) ; Length: 9.76" (248 mm) ; Height: 4.6" (117 mm)
Frequency Radio	2.4 GHz: 2400 MHz ~ 2472 MHz ; 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Humidity (non-condensing)	Operating: 90% or less ; Storage: 90% or less
LED Indicator	1 x Power / 2.4 GHz/5GHz
Maximum Power Consumption	9W
MIB	I/II, Private MIB
MU-MIMO	Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) MU-MIMO capable wireless devices simultaneously
Multiple BSSID	Supports 16 SSIDs (8 SSIDs per Band)
Operating frequency	Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes	Access Point Mode ; Mesh Mode

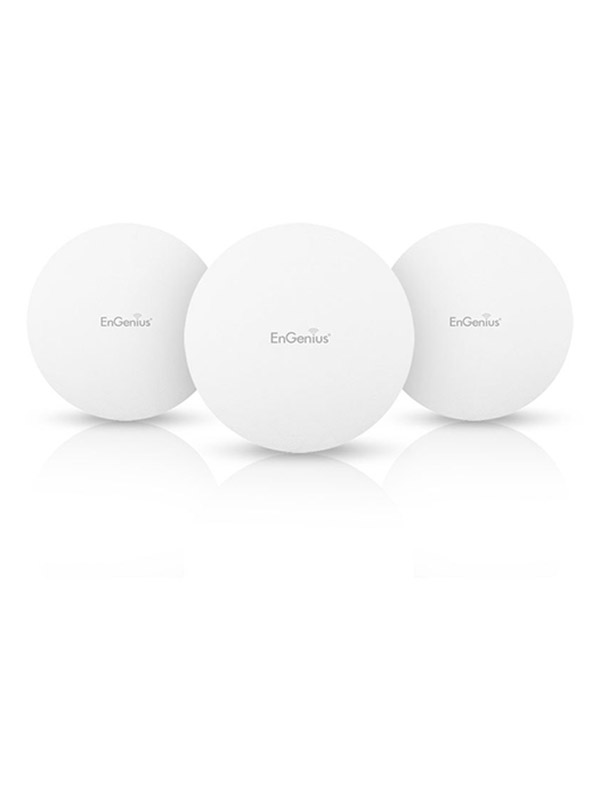

Package Contents	3 – EWS330AP Dual-Band AC1300 Indoor Access Points ; 3 - T-Rail Mounting Kits ; 3 - Ceiling and Wall Mount Screw Kits ; 3 - Mounting Brackets ; 3 - RJ-45 Ethernet Cables ; 1 - Quick Installation Guide
Power Source	Power-over-Ethernet: 802.3af Input ; IEEE 802.11e Compliant Source ; 12VDC /1A Power Adapter (not included)
QoS	Compliant with IEEE 802.11e Standard ; WMM
Radio Chains/Spatial Streams	2x2:2
SNMP	v1, v2c, v3
Spanning Tree	Supports 802.1d Spanning Tree Protocol
Stand-Alone Management Features	Auto Channel Selection ; Auto Transmit Power ; Wireless STA (Client) Connected List ; Guest Network ; Fast Roaming (802.11k & 802.11r) ; Pre-Authentication (802.11i, 802.11x) ; PMK Caching (802.11i) ; RSSI Threshold ; Band Steering ; Traffic Shaping ; VLANs for Access Point – Multiple SSIDs ; Backup/Restore Settings ; Auto Reboot ; E-Mail Alert ; Site Survey ; Save Configuration as Default
Standards and Protocols	IEEE 802.11b/g/n on 2.4 GHz ; IEEE 802.11a/n/ac on 5 GHz
SU-MIMO	2.4 GHz - Two (2) Spatial Stream SU-MIMO up to 400 Mbps to individual 2x2 VHT40 client devices (300 Mbps for HT40 802.11n client devices) ; 5 GHz - Two (2) Spatial Stream SU-MIMO up to 867 Mbps to individual 2x2 VHT40 client devices
Supported Data Rates (Mbps)	2.4 GHz: Max 400 ; 5 GHz: Max 867 ; 802.11b: 1, 2, 5.5, 11 ; 802.11a/g: 6, 9, 12, 18, 36, 48, 54 ; 802.11n: 6.5 to 400 Mbps (MCS0 to MCS15) ; 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Modulation	802.11b: BPSK, QPSK, CCK ; 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM ; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Supported Radio Technologies	802.11b: Direct-Sequence Spread Spectrum (DSSS) ; 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) ; 802.11n/ac: 2x2 MIMO with 2 Streams
Surge Protection	0.5KV
Temperature	Operating: 32ºF~104ºF (0 ºC~40 ºC) ; Storage: -22 ºF~176 ºF (-30 ºC~80 ºC)
Transmit Power	Up to 26 dBm on 2.4 GHz ; Up to 26 dBm on 5 GHz ; Tx Beamforming (TxBF)
VLAN Tagging	Supports 802.1q SSID-to-VLAN Tagging ; Cross-Band VLAN Pass-Through ; Management VLAN
Wireless Security	WEP Encryption 64/128/152 bit ; WPA/WPA2 Enterprise (WPA-EAP Using TKIP or AES) ; Hide SSID in Beacons ; MAC Address Filtering, Up to 32 MACs per SSID ; Wireless STA (Client) Connected List ; SSH Tunnel ; Client Isolation
Processor	Qualcomm® 717 MHz Quad-Core CPU ; 4x ARM Cortex A7
Product Warranty
Warranty	12 Months
